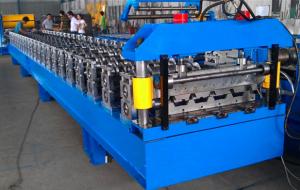

Aluminum Steel Tile Roll Forming Machine For Wall Building Material

Model Number : 950,1100

Certification : CE

MOQ : 1 set

Payment Terms : T/T, L/C, Western Union

Supply Ability : 30 sets per month

Delivery Time : Within 30 days after receive down payment

Packaging Details : 1. Main machine is covered by plastic film. 2. PLstanding seam roofing machine computer control box, spare parts and other small parts are packed by wooden carto

Dimension(L*W*H) : 8700*1550*1910mm

Shaft material : 45# high grade steel

Power(W) : 11Kw (Depend on final design)

Thickness of raw material : 0.3-0.8mm

Controlling system : Mitsubishi PLC & converter

Voltage : 380V,50HZ,3phase

Cutting type : hydraulic cutting

Contact Now

Aluminum Steel Tile Roll Forming Machine For Roof And Wall

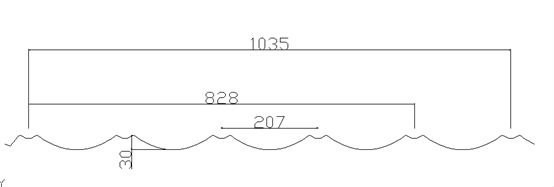

1. cold plate rolling machine profile :

Aluminum Steel Tile Roll Forming Machine For Wall Building Material

We can also design Roll Forming Machine according to your specific profile drawing.

Descriptions of Material
(1)Suitable Material :	PPGI PPGL GI
(2)Material Width	914-1250mm
(3)Material	Thickness :0.40 - 0.80 mm

2. The Chart of Process flow

Decoiling→ feeding→ pressing and forming the shape→ measure the length→ cutting→ receiving the plates

Equipment sketch map:

Aluminum Steel Tile Roll Forming Machine For Wall Building Material

3. Specific setails:

1) Main Motor Power: 5.5KW

2)Hydraulic Station Power: 4KW

3) Hydraulic Oil Pump: CB-E310

4)Sprocket: P-25.4

5)Roller Station: 14

6)Yield Strength: 32MPa

7)Diameter of Principal Axis: 95mm

8)Material of Roller: 45#steel hard chrome plating

9)Processing Speed: 0-15m/min

10)Thickness: 0.3-1mm

11)Installation Dimension (L*W*H): 7.5m*1.5m*1.2m

12)Total Weight: 4.8T

13)Coil Width: 1000/1250mm

14)Cover Width: 840/1040mm

15)Equipment Parts: forming machine, hydraulic cutter, hydraulic station, electric controlling system and counter.

Decoiler	1set
Feeding & guiding device	1set
Main roll forming machine	1set
Hydraulic cutting system	1set
Controlling system	1set
Run out table	1set

4. Packing & Delivery

Packaging Details: main machine is naked and the computer control box is packed by carton box
Delivery Detail: 30days after receiving the deposit

1. We have professional technicians for loading
Guaranteed the goods load into container without any damage.
2. Transportation : Machines need one 40 feet container to hold
3. Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.

Our Services

1. Installation and training:
a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2. After Service

a. One year guarantee for whole machine.

b. 24 hours technical support by email or calling

c. If there is any problem found of the machine, we will repair it for free in one year.

3. Market

At recent years,large of products were sold to Russia,India,England,Australia,America,Kazakhstan,Malaysia,Nigeria,Rumamia and Albania etc,more than 50 countries and regious.

FAQ

1: How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK

2: How to visit our company:

Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.

ENDING

We can also make the machine according to the clients' requirements. If you are interested in our products, please send inquiry to us, we will be back to you in the first place , looking forward to cooperating with you .
